S&M THD Frame



More Information
BrandS&M
Wheel Size20-inch

American manufacturers of frames, bars, stems, forks and more. All their steel and alloy parts are produced in-house and their frames hand-welded for ultimate quality control. Insane riders like Hoder and Hucker really put the frames to the test for complete end-user reassurance.

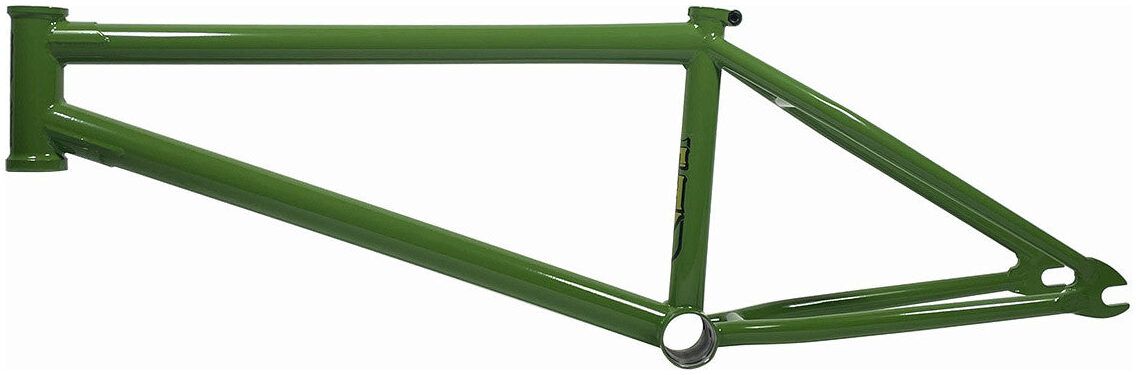

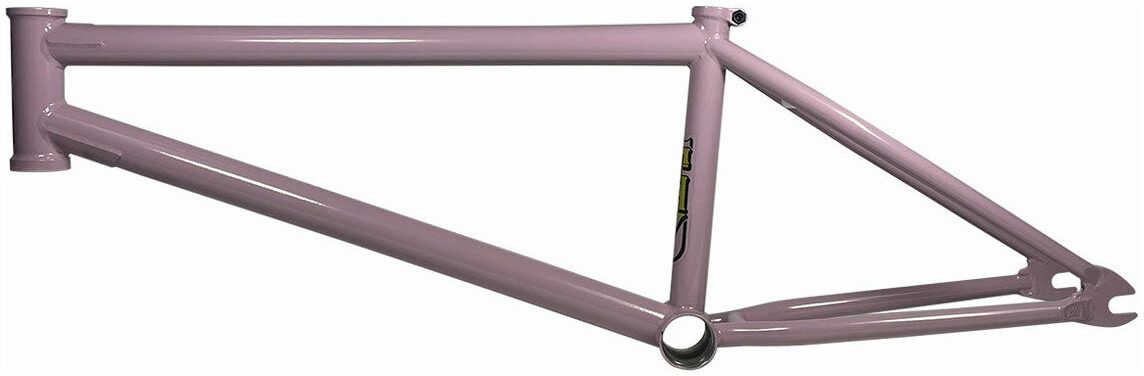

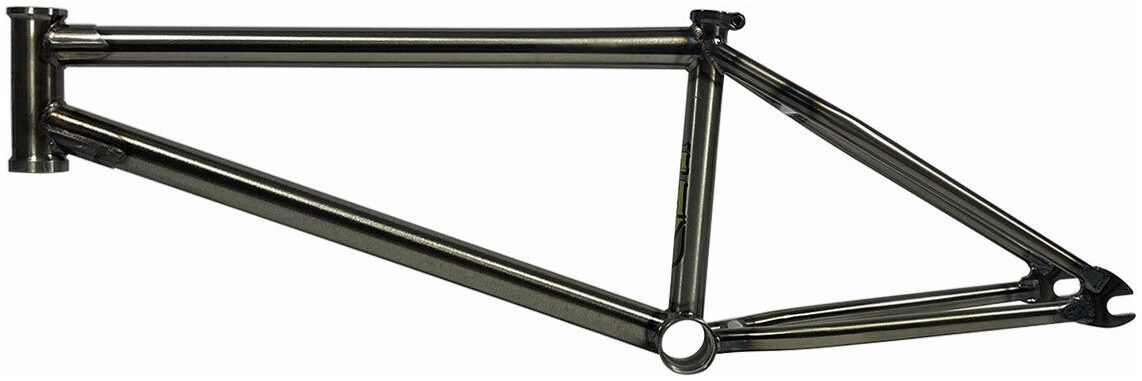

S&M THD Frame
S&M THD Frame S&M THD Frame S&M THD Frame

S&M's THD Street Frame is an updated version of the Holy Diver frame. It was originally designed as an all-around frame but has been transformed into S&M's most street-specific model. Its ¼" thick, compact, heat-treated dropouts are ultra-strong and allow for ample peg clearance. And the taller head tube reduced the number of stem spacers needed for a cleaner looking and more solid front end. This updated version known as the THD or “Tall Hold Diver" has a 9.25" stand-over that looks more proportioned with the taller head tube and S&M spread the top and down tubes apart as well. We’ve added a thicker .049" straight-gauge Thermal X downtube to resist denting and we’ve removed all brake mounts for a cleaner look.

Specification

  • Top Tube Lengths: 20-inch, 20.25", 20.5", 20.75" or 21"
  • Rear End Length: 12.7" – 13"
  • Head Tube Angle: 75.5°
  • Head Tube Style: 5" Integrated (45°/45°, 41.8mm)
  • Seat Tube Angle: 71°
  • Seat Clamp: Investment Cast
  • Seat Post Size: 1" (25.4mm)
  • Bottom Bracket Height: 11.7"
  • Bottom Bracket Style: Mid
  • Standover Height: 9.25"
  • Brake Mounts: None
  • Dropouts: 14mm Slot, 4Q-Baked
  • Gyro Tabs: None
  • Tubeset: ThermalX Butted Tubing
  • Weight: 5.1lb (2.31kg)
