FIT Tom Dugan Signature Frame
| Brand | Fit |
|---|---|
| Wheel Size | 20-inch |

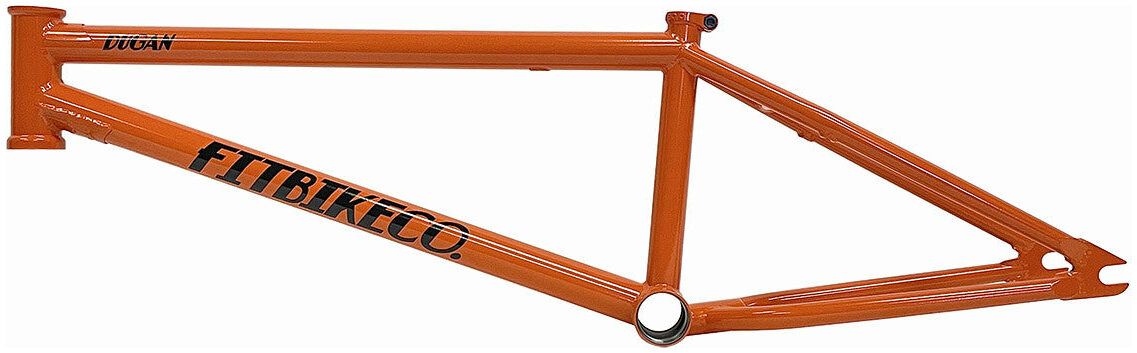

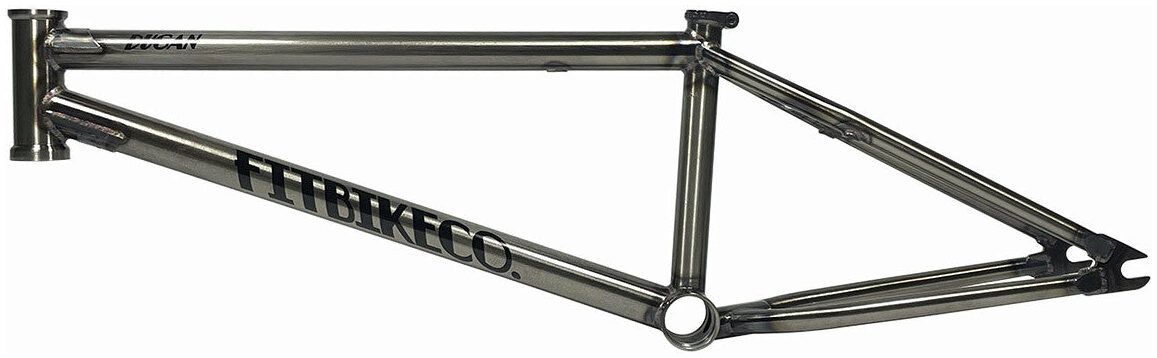

Tom Dugan’s signature frame is made for hauling ass and handling all sorts of wild set-ups. Stable yet responsive geometry works equally well in hoods or the woods. Made in USA.
Specification
- Top Tube Length: 21" or 21.25"
- Rear End Length: 13.4"
- Head Tube Angle: 75°
- Head Tube Style: Integrated (45°/45° 41.8mm)
- Seat Tube Angle: 71°
- Seat Clamp: Investment Cast
- Seat Post Size: 25.4mm
- Bottom Bracket Height: 11.65"
- Bottom Bracket Style: Mid
- Standover Height: 8.5"
- Brake Mounts: Thread-On (Sold Separately)
- Dropouts: 4Q-Baked
- Gyro Tabs: None
- Tubeset: Vari Wall Thermal-X
- Weight: 4.95Lbs
