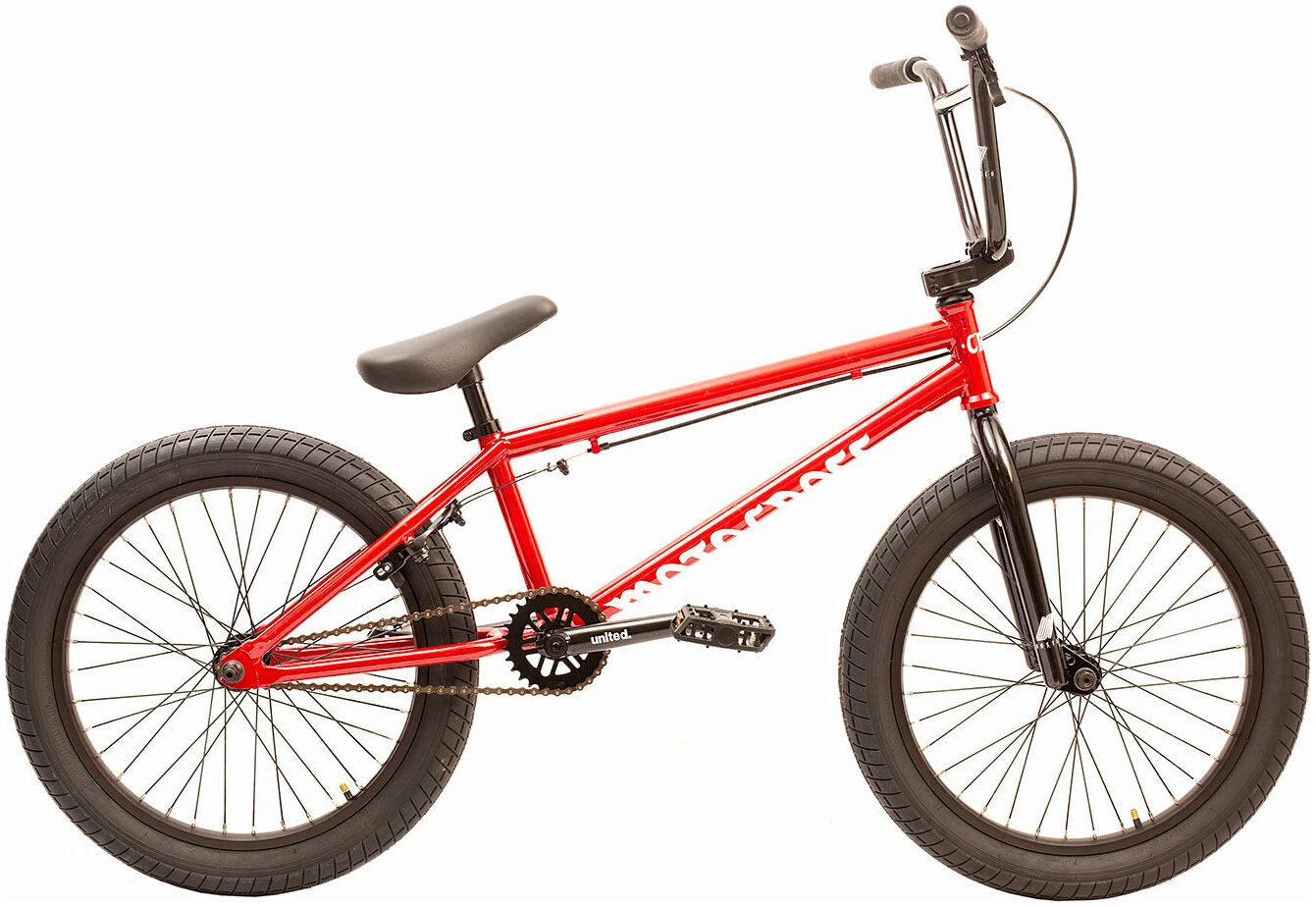

United Motocross 2026 BMX Bike

Specification

Frame and Forks

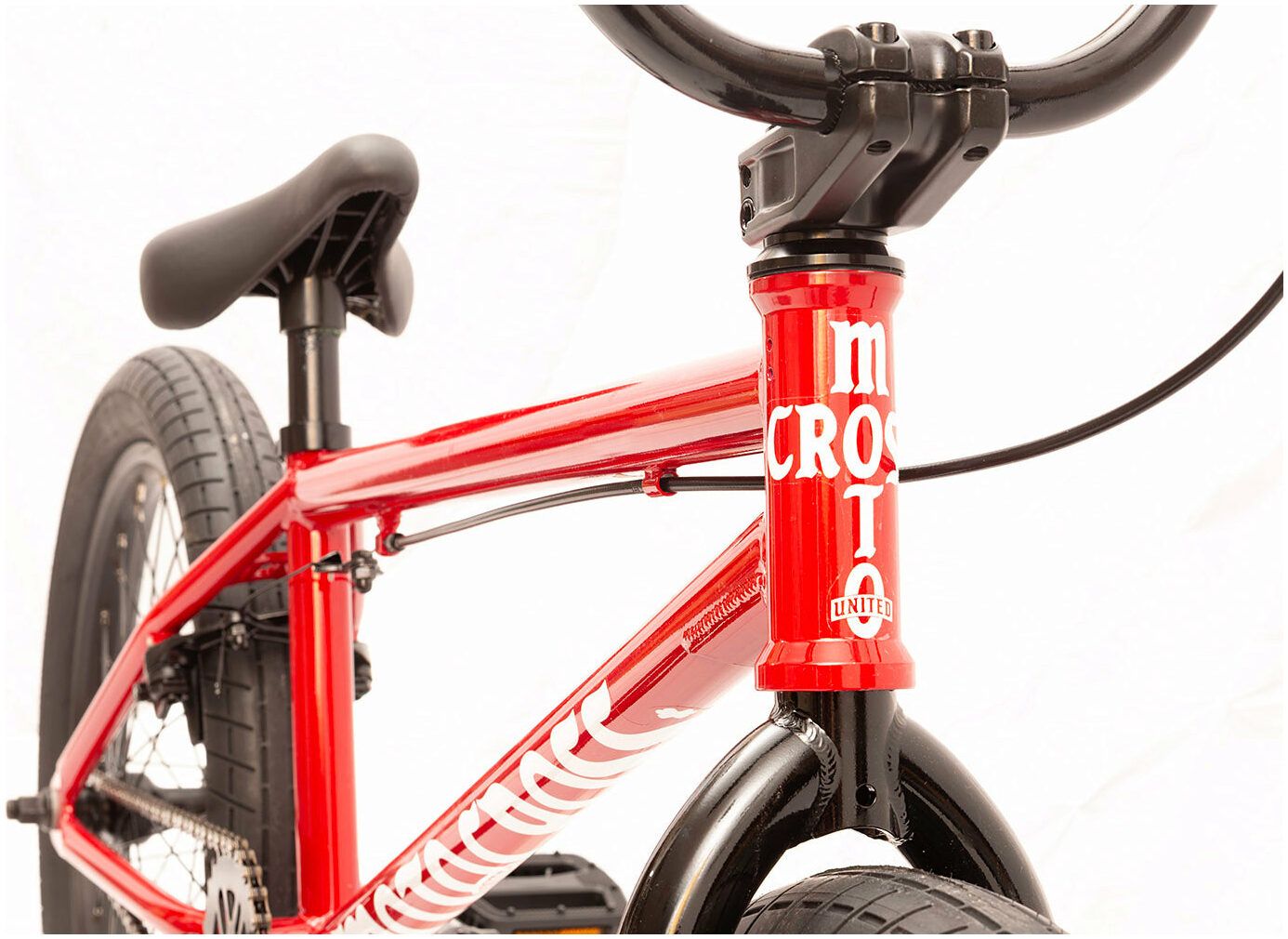

• Frame: Cromo top tube, welded brake mounts, integrated head tube, mid bb, cnc seat stay bridge embossed logo down tube gusset
• Forks: Cromo steerer tube, integrated bearing race, tapered 1020 hi tensile steel legs
• Headset: United integrated sealed bearing

Drivetrain

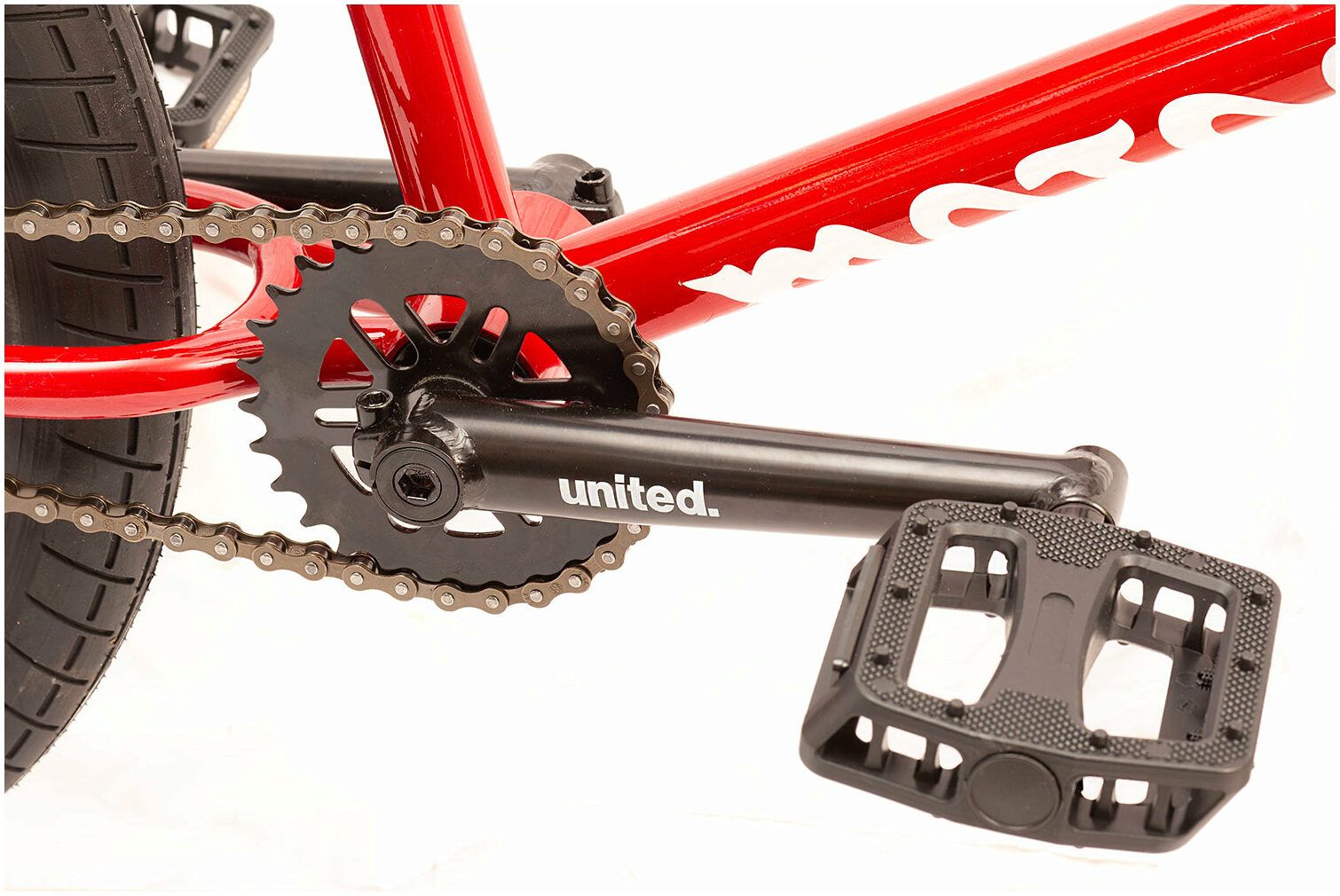

• Cranks: 3-piece 170mm, tubular cromo, 8 spline, printed united logo
• Bottom Bracket: United sealed bearing mid
• Sprocket: 28T Steel
• Chain: X410
• Pedals: United Supreme PC

Steering

• Top Tube Length: 21"
• Handlebars: 9" x 29" 1020 hi tensile steel with 1° up sweep, 12° back sweep
• Grips: United jimmy grips & united bar ends
• Stem: United 50mm reach top load stem with embossed united logo on faceplate and forged detailing on sides

Seating

• Seatpost: Integrated with seat
• Seat Clamp: Alloy
• Seat: United padded seatpost combo with custom sewn patch on rear

Braking

• Rear Brake: 990
• Rear Lever: Alloy

Wheels

• Front Rim: Alloy 36H, Aero, Single Wall
• Rear Rim: Allo 36H, Single Wall
• Front Hub: 36 Hole Alloy, Sealed Bearing, 10mm Female Axle
• Rear Hub: 36 Hole united supreme sealed alloy cassette hub with 14mm axle, sealed bearing 9t driver, 4 pawl, ultra loud mechanism
• Front Tyre: 20 x 2.40"
• Rear Tyre: 20 x 2.40"
