S&M Widemouth Pitch Fork



More Information
BrandS&M

American manufacturers of frames, bars, stems, forks and more. All their steel and alloy parts are produced in-house and their frames hand-welded for ultimate quality control. Insane riders like Hoder and Hucker really put the frames to the test for complete end-user reassurance.

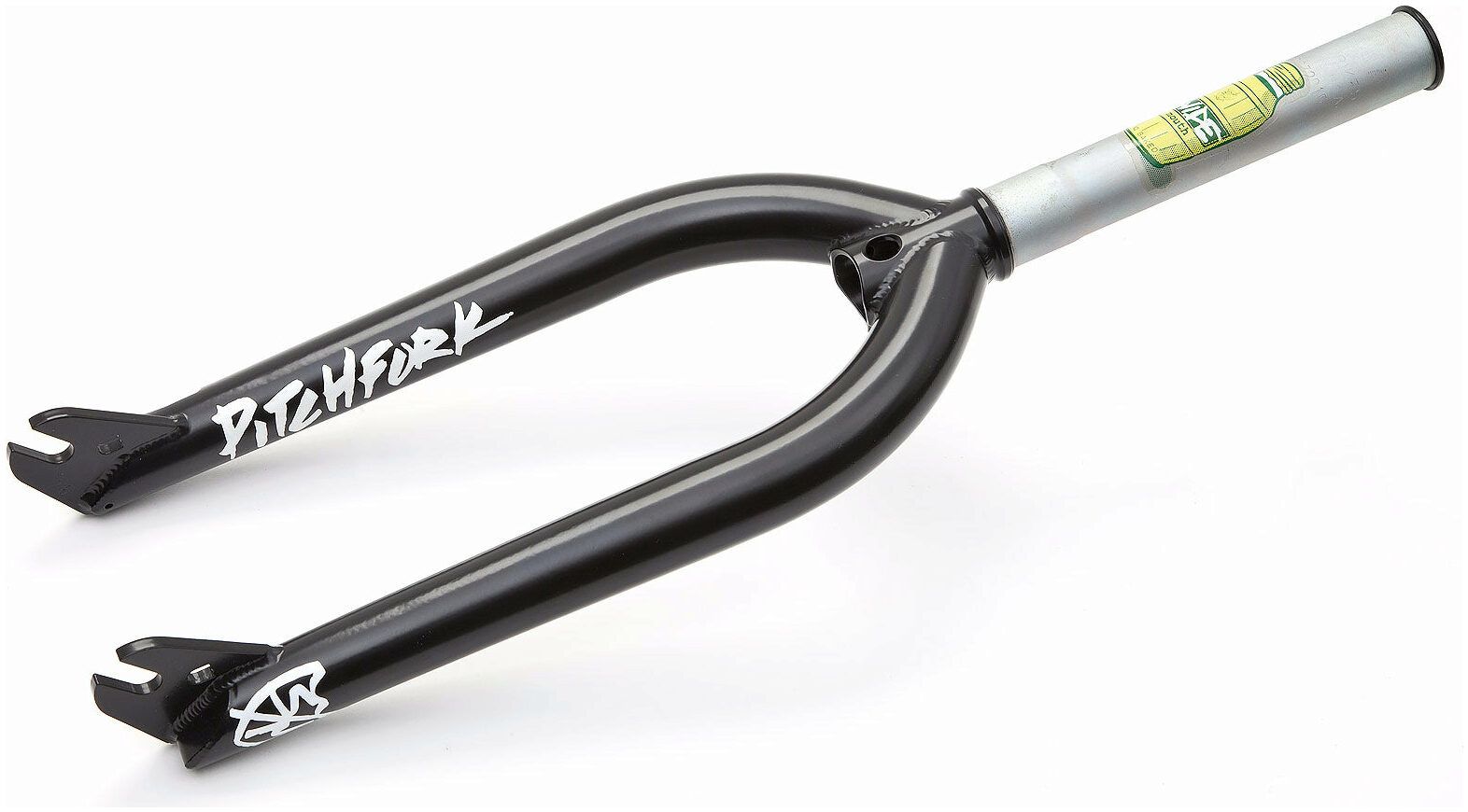

S&M Widemouth Pitch Fork
S&M Widemouth Pitch Fork S&M Widemouth Pitch Fork S&M Widemouth Pitch Fork

The Widemouth fork features everything you know and trust from S&M forks-the finest quality construction and made to withstand to hardest riding you can dish out. The Widemouth name comes from a larger curve radius that creates increased clearance for the larger tyre sizes found on modern bikes. A traditional 33mm offset provides stability and control on all terrains and at any speed. Available for 20 and 22" wheel sizes.

Specification

  • Legs - Double Butted Tapered 4130 Chromoly
  • Dropouts - Laser Cut 3/8" Slot
  • Steerer Tube - 1 Piece CNC-Machined 4130 Chromoly Extruded 6061 Steerer Tube Insert
  • Steerer Tube Length - 166mm or 173mm
  • Compression - M24 X 1.5 Thread - 6mm Allen Slot
  • Axle to Crown - 320mm
  • Offset - 33mm
  • Weight - 1.99 lb (.90 kg)
  • Heat Treat - 4Q Baked Post-Weld
