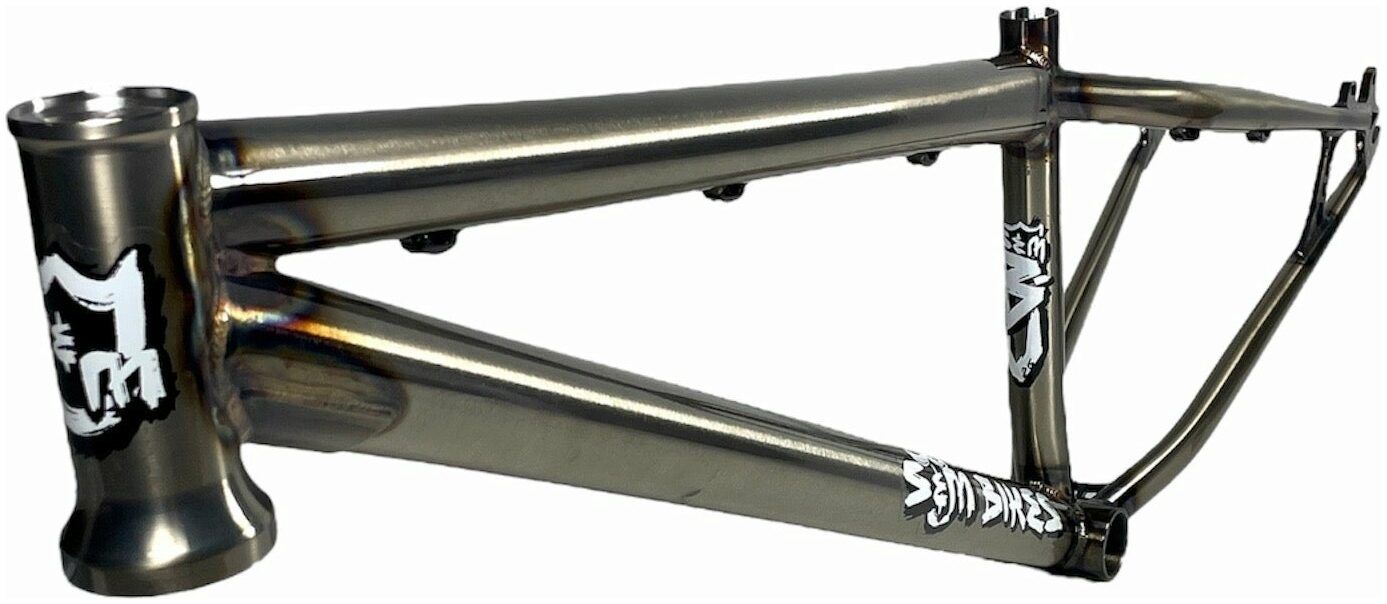

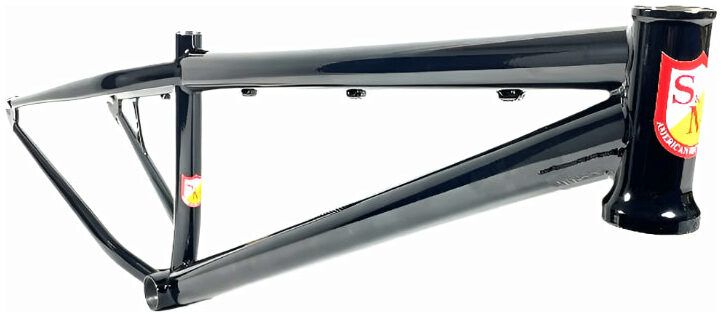

S&M Big Jumper 26-Inch Frame
Brand | S&M |
---|---|
Wheel Size | 26-inch |
S&M believe 20-inch bikes are the original Dirt Jumpers and giving that moniker to 26-inch frames blows, but at the end of the day all that really matters is the ride. The 26-inch BJ is designed to go fast and high, soak up bumps and brake better than its smaller counterparts. And unlike a smaller-rigid bike, a 26-inch bike with a suspension fork and disc brake not only roasts transitions almost effortlessly, it leaves riders in better condition to have just as much fun the next day.
Features
- Geometry based on 100 - 120mm Suspension or equivalent rigid fork
- Headtube accepts 1.5" Tapered Steerer
- Disc size is 160mm with 0mm IS to Post mount adaptor
- Final stickers have not been decided on yet
- Max Tyre 26-inch X 2.25" slammed (2.35" pulled back a bit)
Specification
- Top Tube Lengths: 22-inch, 22.5", 23" or 23.5"
- Rear End Length: 15.1" Slammed
- Head Tube Angle: 69°
- Standover Height: 10-inch
- Bottom Bracket Height: 12.6" (.400" Drop)
- Seat Tube Angle: 73°
- Head Tube: 120mm Tall Integrated 42/52 Style
- Bottom Bracket Style: 73mm Euro Bottom Bracket
- Brake Mounts: 160mm Disc With 0mm IS To Post Mount Adaptor
- Dropouts: 3/8" Slot 135mm Spacing W/Integrated Tensioners
- Seat Post Size: 27.2mm Post - 30mm Clamp
- Max Sprocket: 30 Tooth Standard Chain Line (32 With Additional Spacers)
- Weight: 5.6Lbs (22-inch TT)
