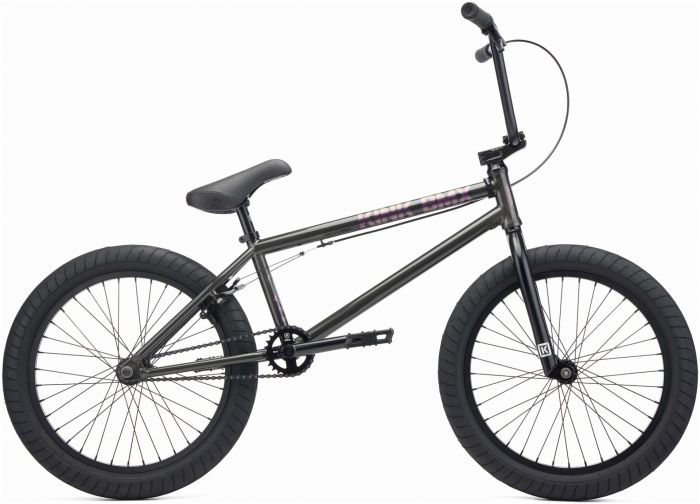

Kink Setup XL 2027 BMX Bike

The all-new Kink Setup XL is a super versatile bike ready to handle more serious riding. This model features a 4130 chromoly frame front triangle, forks, and handlebars, improving the overall strength and longevity of the bike. Additional upgrades, such as the Stealth seat system, offer greater adjustability and modern compatibility. Its moderate-to-modern geometry is also great for all types of riding, with the XL sizing designed for taller riders. The Setup XL is available in Iridescent Black and Oxide Orange colorways and is also offered in a traditional size.

Specification

Frame and Forks

• Frame: Kink Setup XL 4130 Chromoly Front Triangle
• Headset: Mission Sealed Integrated (41.8 x 45)

Drivetrain

• Cranks: Kink Ridge 3-Piece Tubular Chromoly 170mm - 8 Spline
• Bottom Bracket: Sealed Mid 19mm
• Sprocket: Mission Breach 25T
• Driver: 9T
• Chain: Mission 410
• Pedals: Kink Hemlock

Braking/Shifting

• Brake: Mission Cease V2
• Rear Lever: Mission Token
• Brake Cable: Mission L3 Linear

Steering

• Handlebars: Kink T925 9.25" 100% 4130 Chromoly
• Grips: Kink Ace Flangeless
• Stem: Kink Bold HRD 50mm

Seating

• Seatpost: Mission Stealth
• Seat Clamp: Mission Slim Clamp
• Seat: Kink Plymouth Stealth

Wheels

• Rims: Mission X7
• Front Hub: Mission Covert Unsealed 3/8" Axle
• Rear Hub: Mission Engage Sealed Cassette 14mm
• Tyres: Kink Sever 2.4"

Geometry

• Toptube: 21"
• Chainstay: 13.25"
• HT Angle: 75°
• ST Angle: 71°
• BB Height: 11.6"
• Standover: 9"
• Bar Rise: 9.25"
• Fork Offset: 30mm
