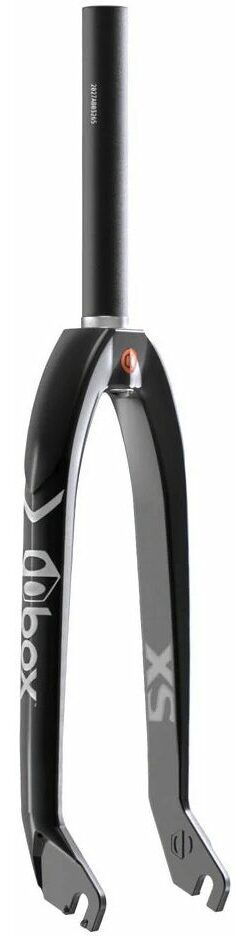

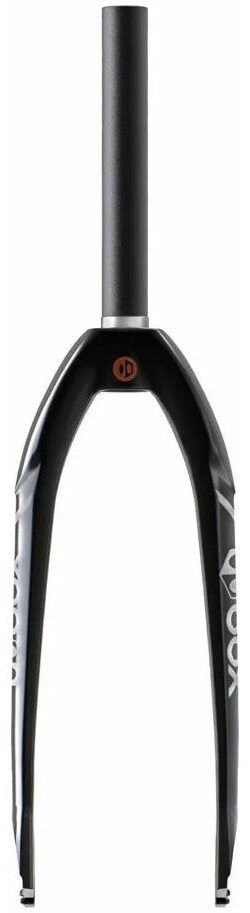

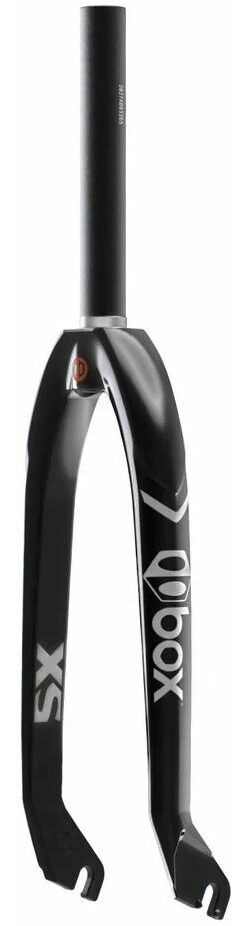

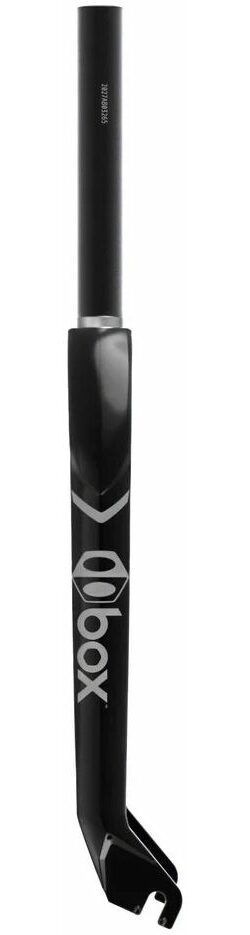

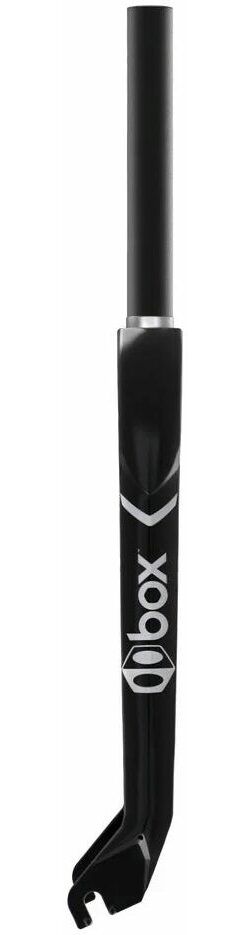

Box One XS Mini Carbon 2025 Fork

All Box One forks are engineered and crafted using Box's Oversized Technology. These forks are the single most crucial component in the quest for bike control. Box has moved carbon from areas of low stress to areas that handle high loads. Those muscular shoulders aren't just for looks, as they are integral to achieving superior steering stiffness. When combined with Box's other Oversized components, you'll experience heightened responsiveness and reduced latency.

This particular model fork is tailored for smaller racers and includes a lighter weight 1 inch 7000 series aluminium steerer tube and 10mm cold-forged dropouts.

Features

• 7075-T6 Aluminium Standard 1" steerer tube to accommodate smaller-sized racers
• Designed for 10mm axle conventional hubs
• Internal butterfly for added durability at steerer tube and fork crown interface

Specification

• Material Legs: Vacuum Mold High Modulus Unidirectional Carbon Fibre
• Material Steerer: Extruded & Butted 7075-T6 Aluminium
• Material Butterfly & Dropouts: 6061-T6 Aluminium
• Hardware: Stem Lock
• Finish: Gloss Black/Matt Black with Water Decals
• Size: 20-inch
• Steerer: 1" Straight
• Offset: 32mm
• Axle: 10mm
• Weight: 397g /14.0oz

Specification

• Material Legs: Vacuum Mold High Modulus Unidirectional Carbon Fibre
• Material Steerer: Extruded & Butted 7075-T6 Aluminium
• Material Butterfly & Dropouts: 6061-T6 Aluminium
• Hardware: Stem Lock
• Finish: Gloss Black/Matt Black With Water Decals
• Steerer: 1" Straight
• Offset: 32mm
• Axle: 10mm
• Weight: 400g /14.1oz

Compatibility

• Box One Stem Spacers
• Box Two Stem Spacers
• Box Two Threadless Headset
• Box Two 1" Integrated Headset
• Box Two 1" Integrated Conversion Headset
• Box Two Headset Adapters
• Box Two Top Load 1" Stem
• Box Hex Lab 1" Stem
• Box Two Centre Clamp 1" Stem

Note: Weight may vary by +/- 10% due to carbon manufacturing processes.
