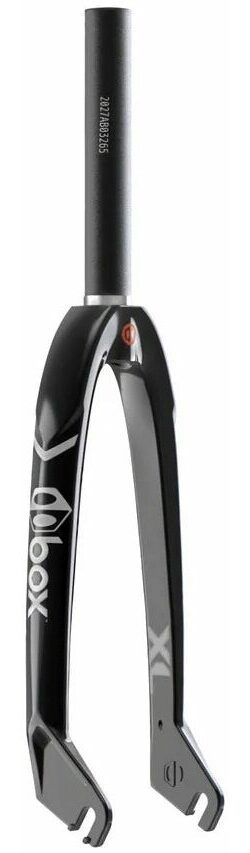

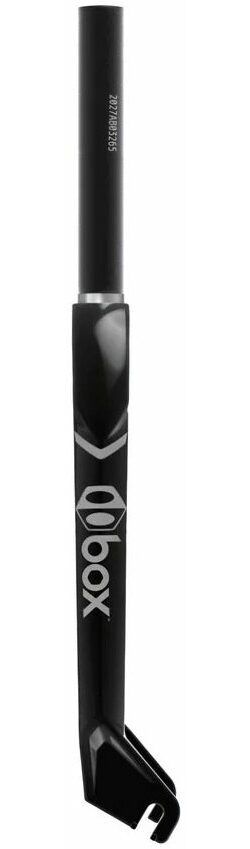

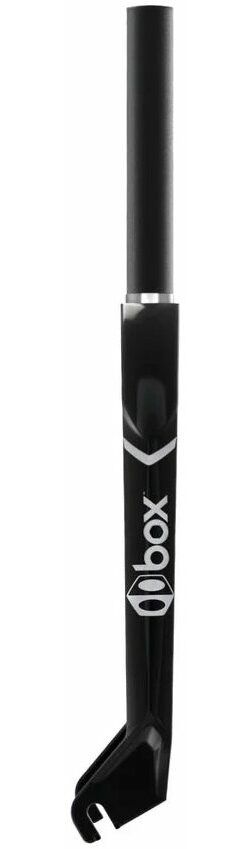

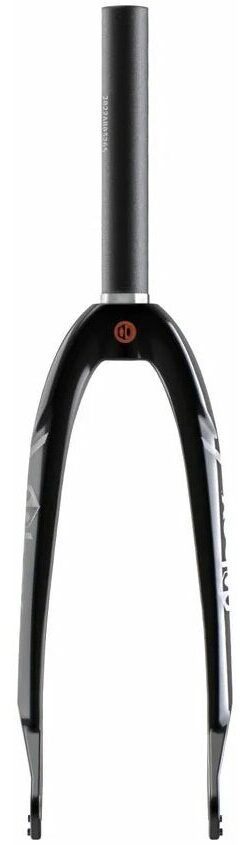

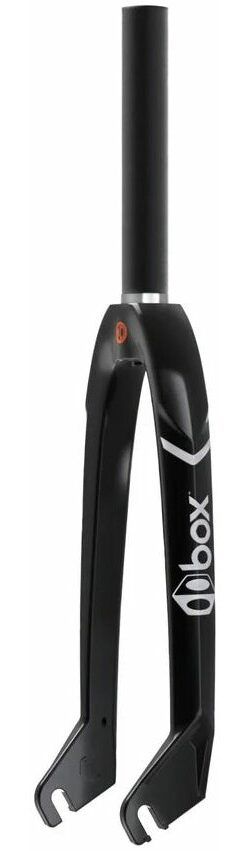

Box One XL Pro Lite Carbon 2025 Fork
| Brand | Box Components |
|---|
All Box One forks are engineered and crafted using Box's Oversized Technology. These forks are the single most important component in the quest for bike control. Box has moved carbon from areas of low stress to areas that handle high load. Those muscular shoulders aren't just for looks as they are integral to achieving superior steering stiffness. When combined with Box's other Oversized components, you'll experience heightened responsiveness and reduced latency.
This particular model fork is tailored for larger-sized racers and therefore includes a lightweight 1-1/8 inch 7000 series aluminium steerer tube and 10mm cold-forged dropouts.
Features
- 7075-t6 aluminium 1-1/8" larger diameter steerer tube to accommodate larger-sized racers
- Designed for 10mm axle conventional hubs
- Internal butterfly for added durability at steerer tube and fork crown interface
Specification
- Material Legs: Vacuum Mold High Modulus Unidirectional Carbon Fibre
- Material Steerer: Extruded & Butted7075-T6 Aluminium
- Material Butterfly & Dropouts: Cold-Forged 6061-T6 Aluminium
- Hardware: Stem Lock
- Finish: Gloss Black/Matt Black with Water Decals
- Size: 20-inch or 24-inch
- Steerer: 1-1/8" Straight
- Offset: 32mm
- Axle: 10mm
- Weight
- 20-inch: 560g / 19.75oz
- 24-inch: 585g / 20.7oz
Compatibility
- Box Two 1.1/8" Integrated Headset
- Box One Carbon 45x45 1.1/8" Integrated Headset
- Box Two Threadless Headset
- Box Two Headset Spacers
- Box One Front Load Stem
- Box One Top Load Stem
- Box Two Front Load Stem
- Box Two Top Load Stem
- Box One Delta Stem
- Box One Centre Clamp Stem
- Box Two Centre Clamp Stem
Note: Weight may vary by +/- 10% due to carbon manufacturing processes.
